Drive Safely
Communicate Freely
Communicate Freely
5 Watt High-Power
Stereo Speaker
Stereo Speaker
Scenarios of M6
M6 is highly versatile in some areas, such as transportation, school bus, logistics, fire truck and police car, etc., where users can quickly collaborate and share information across organizations.
| Physical Characteristics | |
| Dimension | 198.00*60.00*81.20mm(L*W*D) |
| Weight | 442g |
| IP Grade | IP54 |
| Working Temperature | -20 to +70°C |
| Power Supply | DC 12-24V |
| Platform & Connectivity | |
| OS | Android Q |
| Processor | 2.0GHz Quad-core 64 bit processor |
| RAM &ROM | 2GB + 16GB |
| Cellular Network |
GSM: B2 / B3 / B5 / B8
WCDMA: B1 / B2 / B5 / B8
FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28a / B28b
TDD-LTE: B34 / B38 / B39 / B40 / B41 (Antenna needs to be connected)
|
| WiFi Hotspot | IEEE 802.11 a/b/g/n, 2.4G (Antenna needs to be connected) |
| Bluetooth | V4.0+ BLE |
| Location | GPS + AGPS , GLONASS (Antenna needs to be connected) |
| Display | |
| Size & Type | 5.0-inch HD Anti-Glare Screen |
| Touch Panel | LCD Bonded 5 points Capacitive, support wet fingers, glove operation |
| Audio | |
| Microphone | 2 microphones with noise cancellation |
| Speaker | 5 Watt Built-in Speaker |
| Interaction & Interface | |
| Buttons & Channel Knob |
Power Button
PTT Button(P1)
Channel Switch & Volume+/- Knob
Programmable Buttons
SOS Button
|

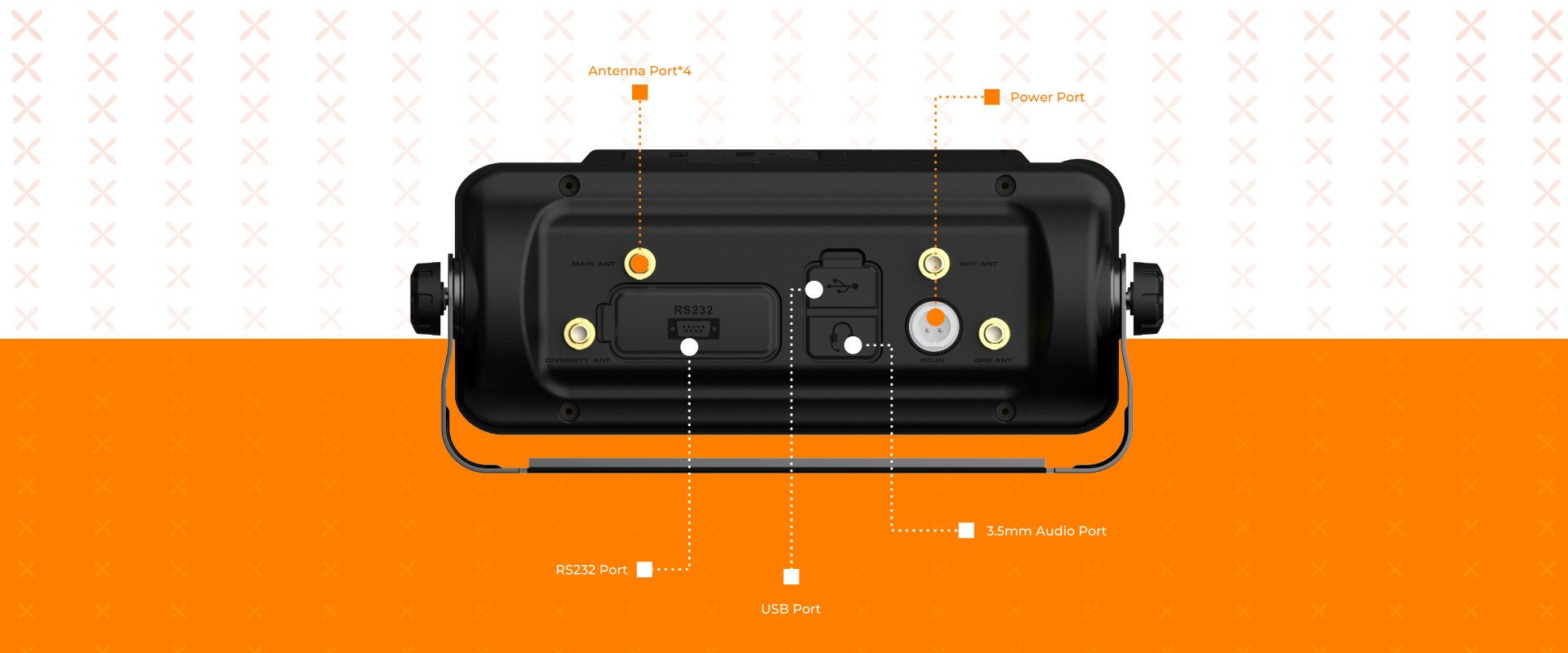

| Interface |
Micro-SIM card slot
10Pin aviation interface
Type-C USB 2.0
USB-A
3.5mm audio interface
3Pin power interface
DB9 interface
Antenna interfaces
|
