When Radio Meets Mobile

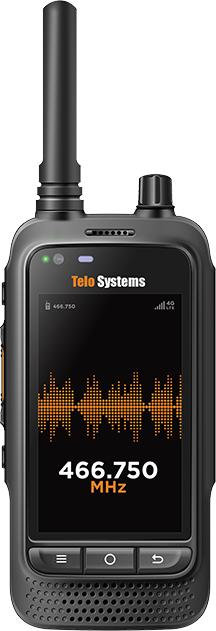

The TE580PD enables extremely seamless communication and collaboration by
integrating mission-critical DMR radio into a feature-rich mobile device.
It is originally designed for taking
advantage of both advanced vividness and subtleties of multi-media communication as well as superb immediacy and stability of matured digital radio technology.
Dual-mode
Always Available
The TE580PD supports seamless switching between broadband and narrowband
networks. Even when catastrophic
broadband failure happens during critical operations, TE580PD can provide point-to-point narrowband communication within 5km①.
① Measured at Shenzhen Bay, 17 th Oct 2019, Clear day,
No obstacle.
Pocket-Size,
Easy to Use
Easy to Use
One of The Most Lightweight② Dual-Mode PTT (218g), highly integrated hardware makes it small and compact. Ergonomic design delivers a more comfortable and friendly user experience.
② Till Feb 18,2020
Extremely Durable
IP67 waterproof, can be dropped into a body of water up to a meter deep for half an hour, passed 1.5m height free drop test, you can take it to any tough place.
| DMR | Specifications |
| Frequency Range | UHF(400~470MHz)/VHF(136~174MHz) |
| Channel Capacity | 16 |
| Transmitting Power | 2W |
| Channel Spacing | 12.5KHz (digital) |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedence | 50 Ω |
| Connectivity | Specifications |
| Frequency Band |
Global Version
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TDSCDMA: B34, B39
FDD-LTE: B1/B3/B7/B8/B20/B28A/B28B
TDD-LTE: B38/B39/B40/B41
American Version:
GSM: B2/B5
WCDMA: B1/B2/B4/B5/B19
FDD-LTE: B1/B2/B4/B5/B7/B12/B17/B19/B28A/B28B
|
| WIFI | IEEE 802.11a/b/g/n |
| Bluetooth | BT 4.0 with BLE |
| GPS | GPS/GLONASS/AGPS |
| Hardware | Specifications |
| CPU | MTK6739 |
| RAM | RAM 1GB + ROM 8GB |
| Display | LCD: TFT 3.11" WVGA Anti-Glare Touch Screen with Coring® Gorilla® Glass |
| Camera |
Rear Camera: 8MP, Auto Focus, Flash Light Front Camera: 2MP |
| Speaker | Ø36mm, 2.0W |
| SIM | Single Micro-SIM Card |
| Buttons | PTT Key, Volume UP & Down Key, Menu/Back/Home, Mute Key, SOS Key, Power Key, DMR Rotary Knob |
| Battery | Li-Po 3600 mAh, Removable |
| USB Port | Micro USB 2.0 |
| Interface | Specifications |
| Sensor | G-Sensor, Proximity Sensor, Light Sensor, E-Compass |
| Software | Specifications |
| Operating System | Android 8.1 |
| Physical | Specifications |
| Dimension(H*W*D) | 119.5mm*61.5mm*23.5mm (Not include the external antenna) |
| Weight | 210g |
| Protection Rating | IP67 |
| Working Temperature | -20o C ~ 70o C |
| Storage Temperature | -30o C ~ 70o C |
