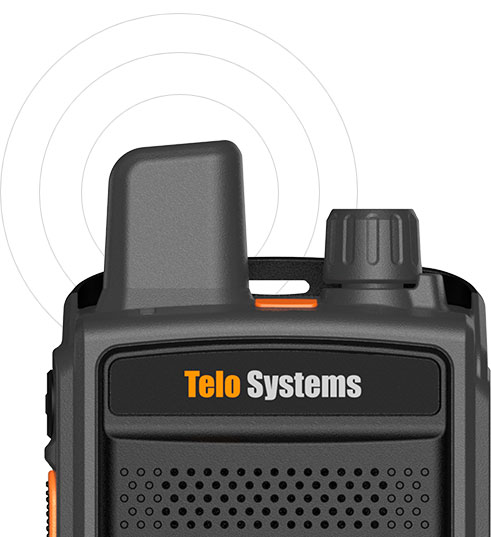

External LTE Antenna
Improving communication performance where the electric field is weak. Decreasing the affection caused by the surrounding environment.
Crystal Loud Speaker
Ø36mm 2w speaker with team’s great effort for the impressive audio performance, make the device easy to hear regardless of the background noise.
Channel Knob
Radio alike features for convenient channel selection.
Android OS
Android based device warmly free for third party application.
Supporting both GPS and GLONASS satellite positioning system, perfect for POC’s in time outdoor tracking and routing solution.
Long-lasting battery
MSM8909 Qualcomm lower power consumption with 3600mAh removable battery guarantee a long-lasting battery life.
WIFI, Bluetooth
 Indoor positioning by using WiFi and Bluetooth beacons.
Connectivity Specifications
Frequency band
Global version:
GSM:B5, B8, B3
WCDMA:B1, B4, B5, B8
FDD-LTE: B1, B3, B4, B5, B7, B8, B20, B28A, B28B
American Version:
GSM: 850(B5),1900(B2)
WCDMA:1, 2, 4, 5
FDD-LTE: 1, 2, 4, 5, 7, 12, 17, 19,25,26,28A,28B
WiFi IEEE802.11 b/g/n (2.4G & 5G)
Bluetooth Bluetooth 4.0 with BLE
Hardware Specifications
CPU MSM8909, 1.1GHz, Quad-Core
Memory 512M DDR3 + 4G ROM
Speaker Ø36mm Max 2.0w
Battery 3600mAh
USB Port USB 2.0 with Micro USB Type
Interface M6 interface for Remote Speaker Microphone,Earpiece, External Camera
SIM Card Slot Nano SIM Card
Software Specifications
Operating Systems Android 6.0
Physical Specifications
Dimensions(H x W x D) 121.5*56.5*28.5mm
Weight Less than 220g
Protection Rating IP67
Working Temperature -20o C ~ 60o C
Storage Temperature -30o C ~ 70o C
