Advanced Noise Reduction

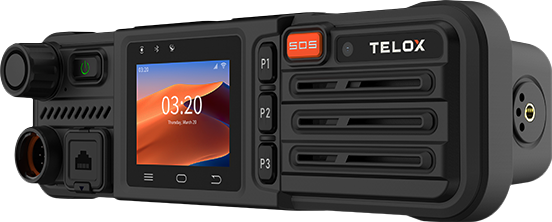

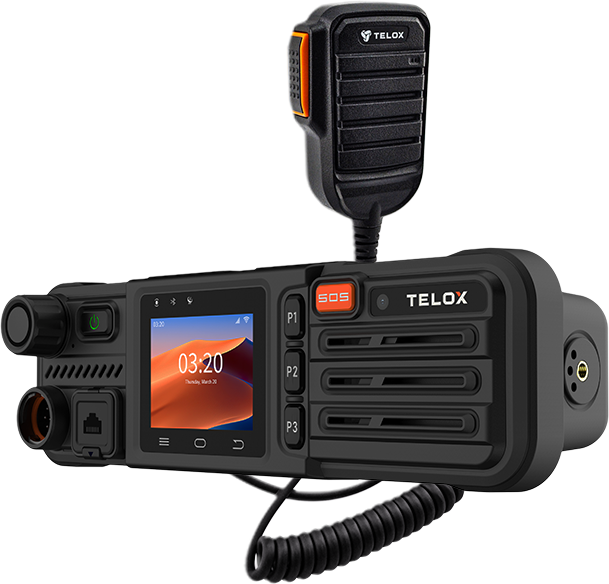

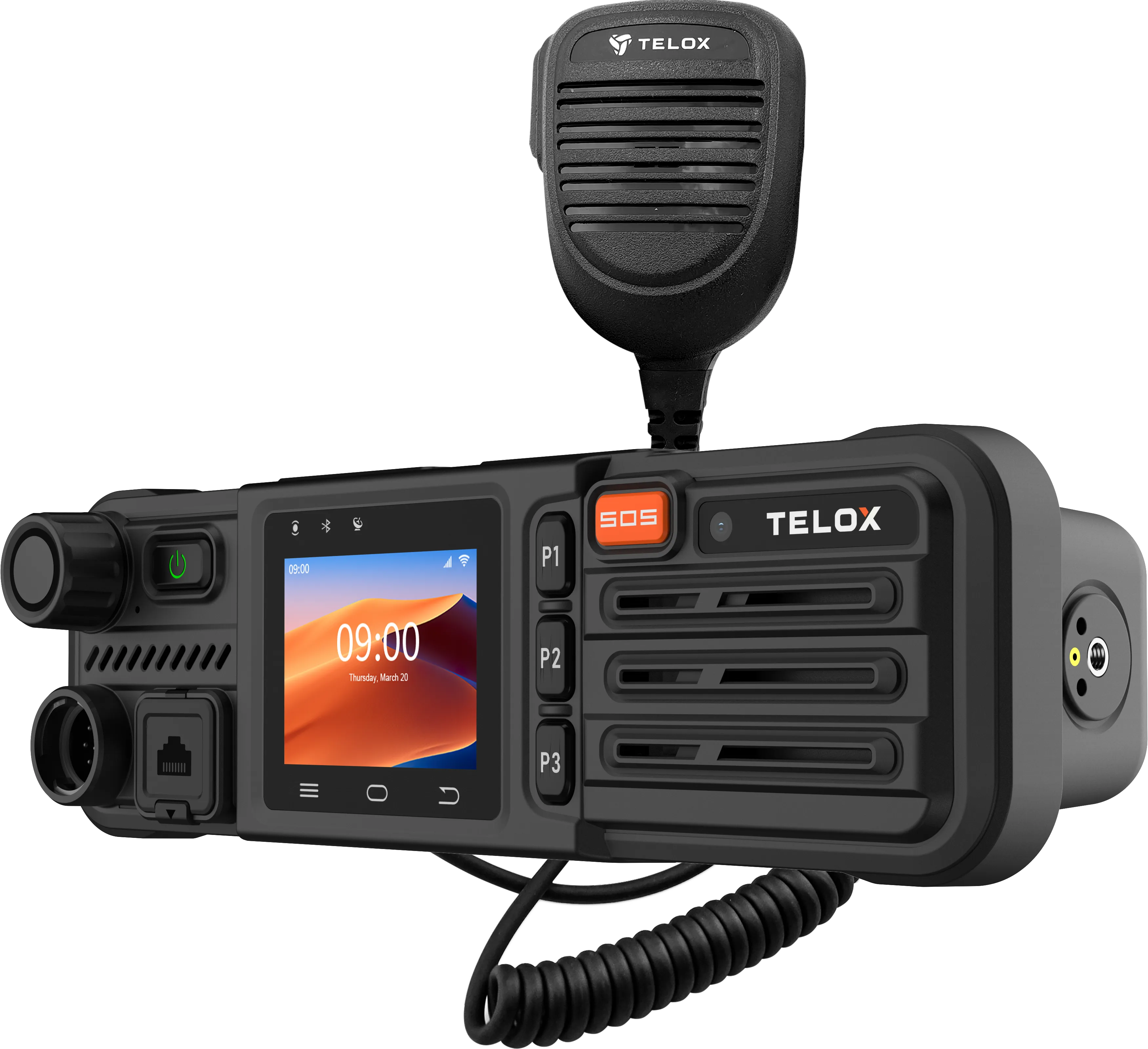

M3
COMPACT SIZE,CONNECT WIDE
Instant & Reliable Communication on the Move
Seamless Network Integration With RJ45
Classic Compact Design
Next-Gen Smart Vehicle Communication
Powerful Audio Output
-
Advanced Noise ReductionWith noise reduction technology, M3 minimizes background interference, providing distortion-free and crisp audio quality for seamless conversations. -
Instant & Reliable Communication on the MovePush-to-Talk (PTT) enables one-button voice communication over a secure network, ensuring real-time connectivity with low latency, high audio clarity, and reliable coverage. -
Seamless Network Integration With RJ45RJ45 interface ensures a stable, high-speed network connection and supports reliable data transmission and multiple device integration for mission-critical applications. -
Classic Compact DesignM3 features a classic design that integrates seamlessly into the dashboard. Its compact and rugged form factor ensures a secure and ergonomic layout of the center control panel, enhancing in-vehicle communications while keeping the cockpit clean and professional. -
Next-Gen Smart Vehicle CommunicationAndroid 12 enhances user experience, strengthens performance and privacy controls, supports broader app compatibility, and improves efficiency and flexibility in fleet management and mission-critical tasks. -
Powerful Audio OutputEquipped with a 5W high-power speaker, M3 delivers loud and clear sound, ensuring reliable communication even in noisy environments.
Instant & Reliable
Communication on the Move
Push-to-Talk (PTT) enables one-button voice communication over a secure network, ensuring real-time connectivity with low latency, high audio clarity, and reliable coverage.
Uncompromised Audio Clarity
Equipped with a powerful 5-watt speaker, the M3 delivers loud and clear sound even in noisy environments to ensure reliable communications, built-in advanced noise cancellation minimizes background interference and delivers distortion-free, crystal-clear audio for seamless calls.

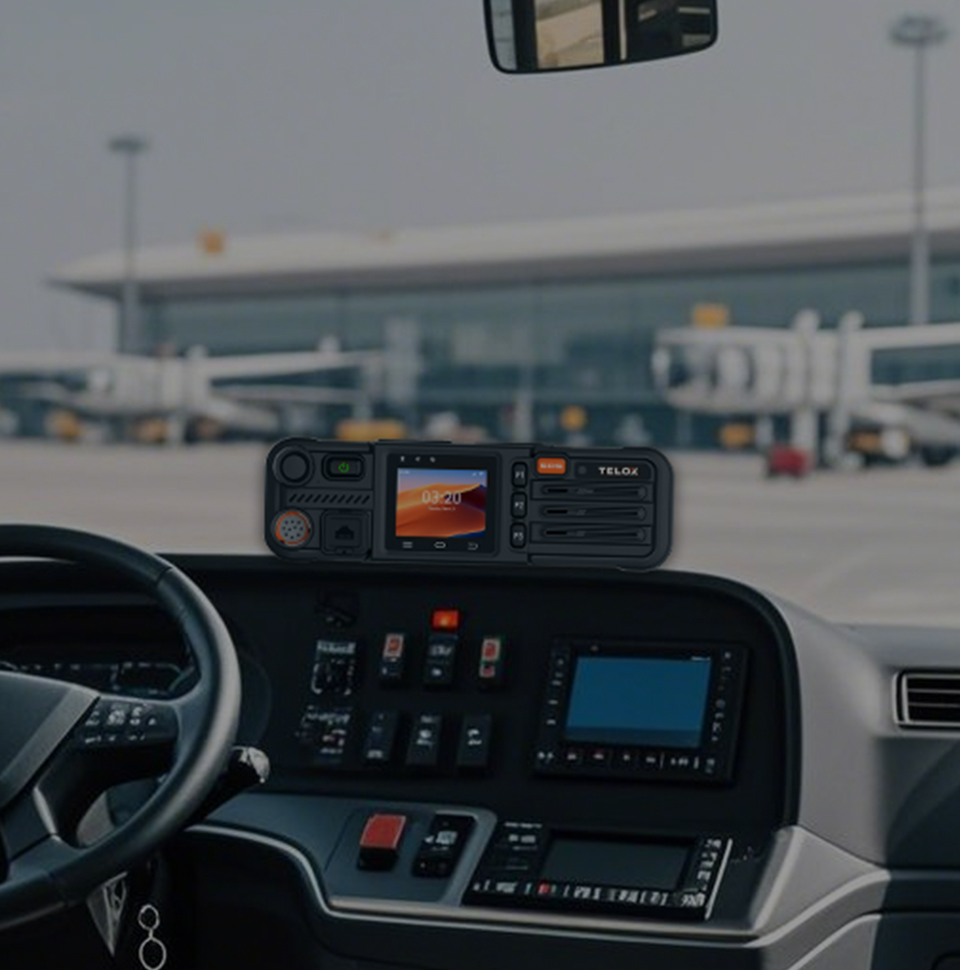

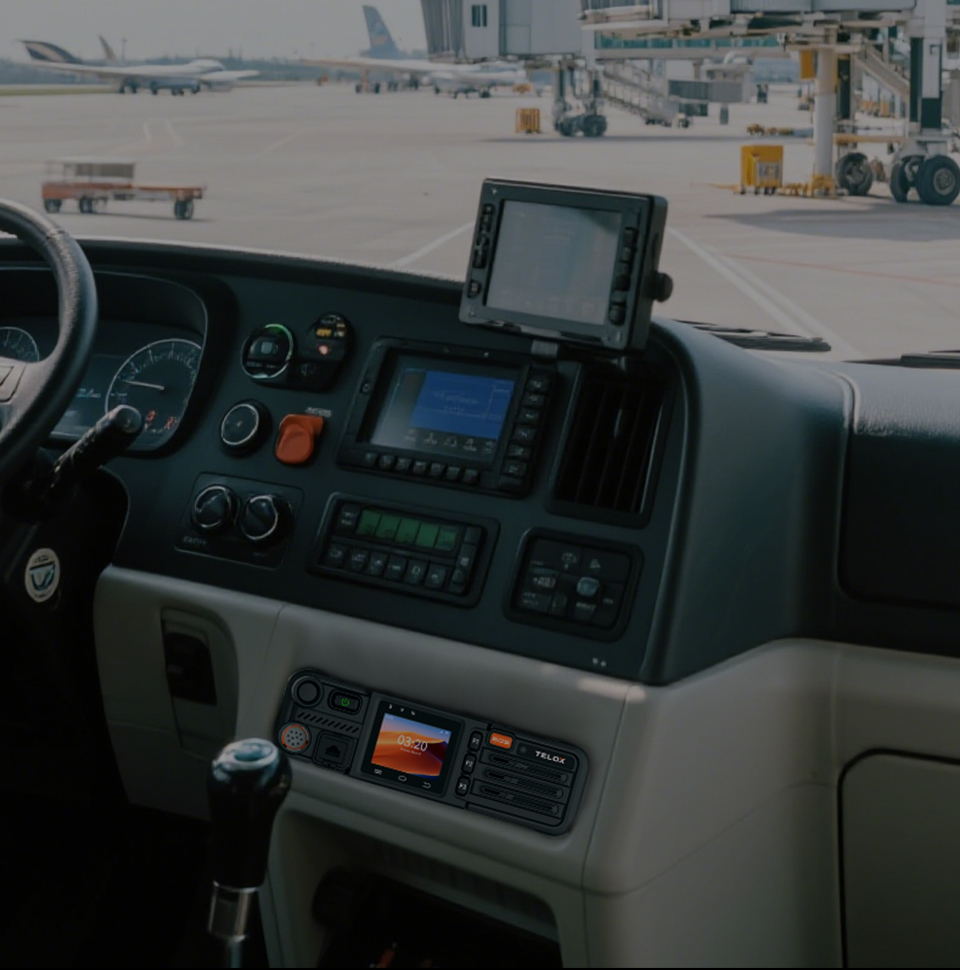

Embedded Installation
Desktop Installation
Compact Design With Versatile Installation
Featuring a classic design with a variety of mounting options for seamless integration into the dashboard or placement in the center console, M3 is compact, robust and ensures a secure and ergonomic layout of the center panel.
M3 Specifications
|
Physical Characteristics
|
Specifications
|
| Dimension | 190.3*58.4*60.9mm |
| Weight | 280g |
|
Environmental
|
Specifications
|
| Ingress Protection | IP54 |
| Storage temperature | -40 to +80°C |
| Working Temperature | -20 to +60°C |
| Storage Humidity | 20%RH~90%RH |
| Power supply | DC 12-24V |
|
Display
|
Specifications
|
| Display |
Type: 2.0-inch TFT IPS LCD Resolution :480*360 ppi Touch Panel:5 points touch |
|
Hardware parameter
|
Specifications
|
| CPU | MT8766,Quad core,2.0 Ghz |
| RAM+ROM | 4GB RAM +64GB ROM |
| Front camera | Front camera: 5MP,FF |
| Speaker | Single speaker,power 5W |
| Microphone | Dual-Mic with Noise Cancellation |
| Battery | Not support |
| Motor | Not support |
| Sensor | Not support |
|
Network
|
Specifications
|
| 2\3\4G Band(Europe) |
GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 FDD-LTE: B1/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B39/B40/B41 |
| 2\3\4G Band（US） |
GSM: B2/B3/B5 WCDMA: B1/B2//B4/B5 FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B66 TDD: B38/B40 |
| WiFi | 2.4G/5G , IEEE 802.11 a/b/g/n,802.11 k/v/r |
| Bluetooth | BT5.0+ BLE |
| GPS | GPS, GLONASS (Antenna needs to be connected) |
|
Hardware interface
|
Specifications
|
| SIM card slot | Micro-SIM slot *2 ,Support hot plug |
| SD card slot | Micro-SD card slot *1 (Up to 128GB) |
| Aviation interface |
10Pin aviation interface *1 (Support keyboard palm microphone, Desktop microphone, Pedal PTT, etc..) |
| USB-Type-C interface | USB-Type-C interface*1 |
| Power supply interface | 3PIN Power supply interface*1 |
| RJ45 interface | RJ45 interface *1（Network Ethernet ） |
| Antenna interface（external） | SMA interface*4（Main antenna，div-antenna，GPS antenna）,WIFI antenna build-in |
| Keypad |
Power on/off keypad*1 PTT Keypad（P1） Program Keyboard，P2/P3 Channel switch & Volume+/- Knob SOS keypad Tri color LED,Power state LED |
| Indicator light | Tri color LED,Power state LED |
|
Operating system
|
Specifications
|
| Operating system | Android12 |
| GSM | Not Support |
|
Accessories
|
Specifications
|
| Inbox accessories |

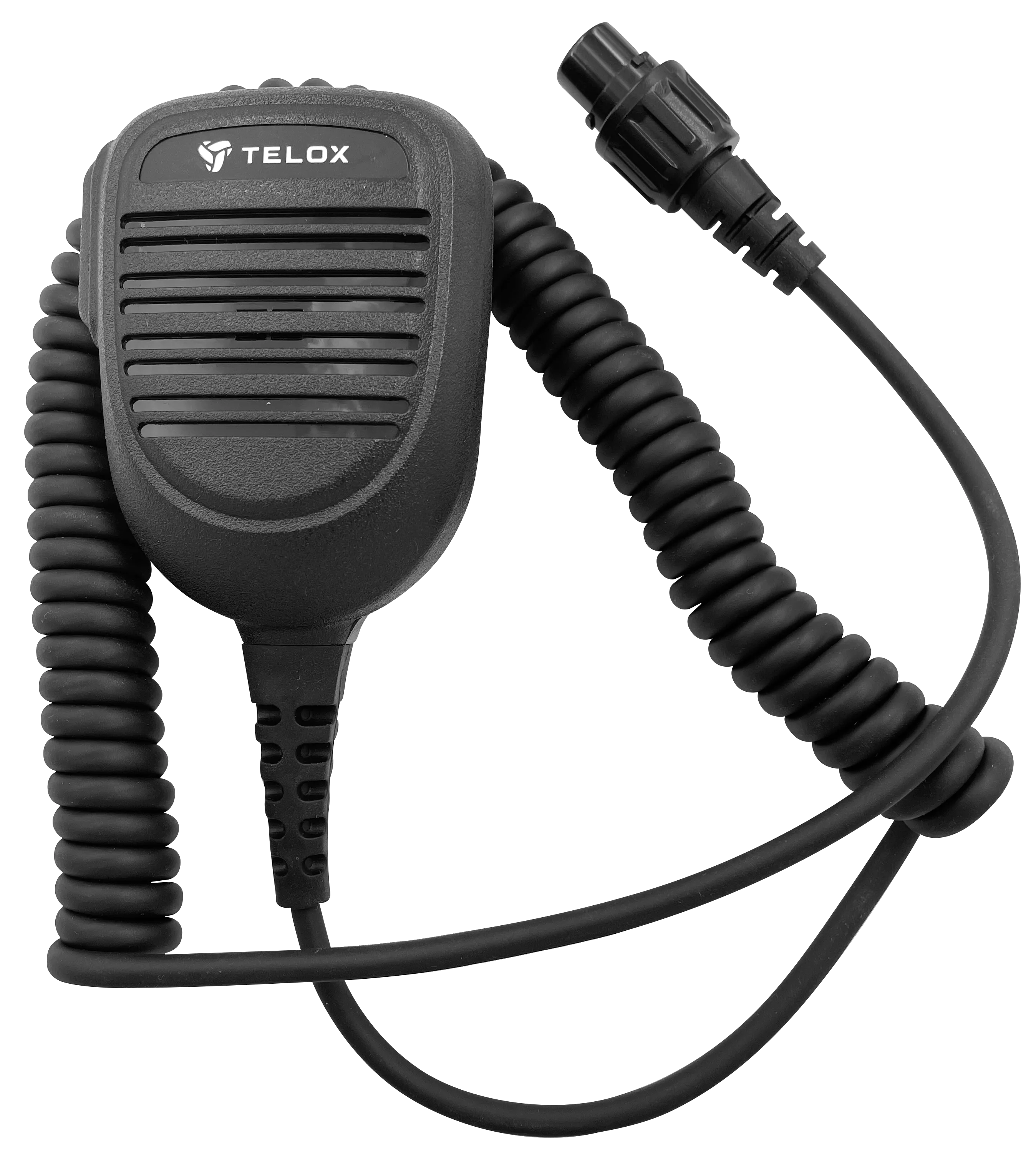

Bracket and strews *1 suit Power cord*1 Palm microphone*1 Box Antenna*1 Quick start guide*1 |
| Optional accessories |
Desktop Mic（TE-DM） Pedal PTT(TE-PP) |
