H.265 Encoding

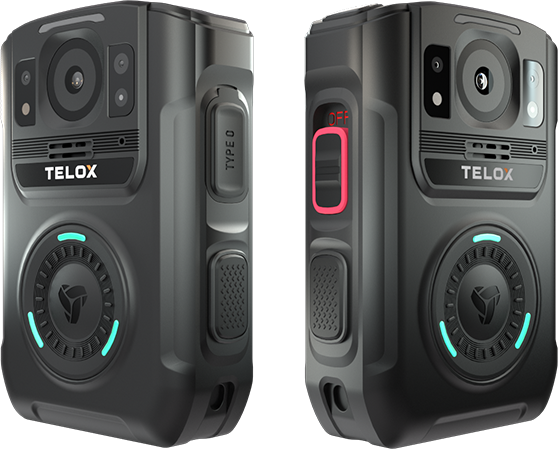

TC100
Capture and Protect with
Confidence
Confidence
Hot-Swap Battery
Night Vision
4K@60fps Capture
Pre/Post Recording
0.96” Color Display
Highlights
H.265 Encoding
Leverage advanced H.265 compression to significantly reduce storage usage while
maintaining high video quality for extended
recording durations.
Hot-Swap Battery
Designed with a hot-swappable battery system, enabling uninterrupted operation by replacing batteries without powering down the device.
Night Vision
Enhanced night vision capability ensures reliable video capture in low-light or
complete darkness, maintaining visibility in all operational environments.
4K@60fps Capture
Record high-resolution video at up to 4K/60fps for clear, detailed footage.
Pre/Post Recording
Equipped with intelligent pre-recording and post-recording buffering,
automatically capturing critical moments before and after manual trigger events to prevent data loss.
0.96” Color Display
Compact 0.96-inch color display provides real-time status monitoring and intuitive interaction, enabling quick access to device information and operational controls.
H.265 Encoding
Leverage advanced H.265 compression to significantly reduce storage usage while maintaining high video quality for extended recording durations.
Hot-swap Battery
Designed with a hot-swappable battery system, enabling uninterrupted operation by replacing batteries without powering down the device.

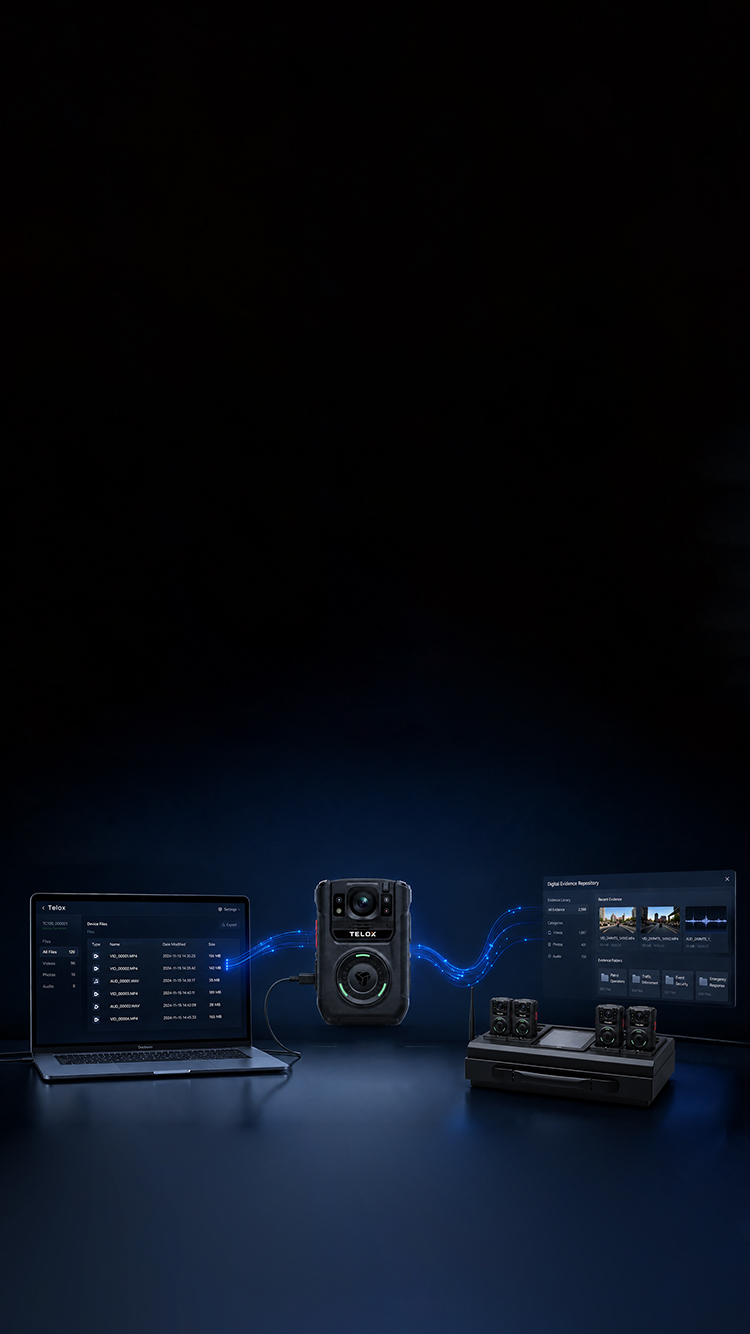

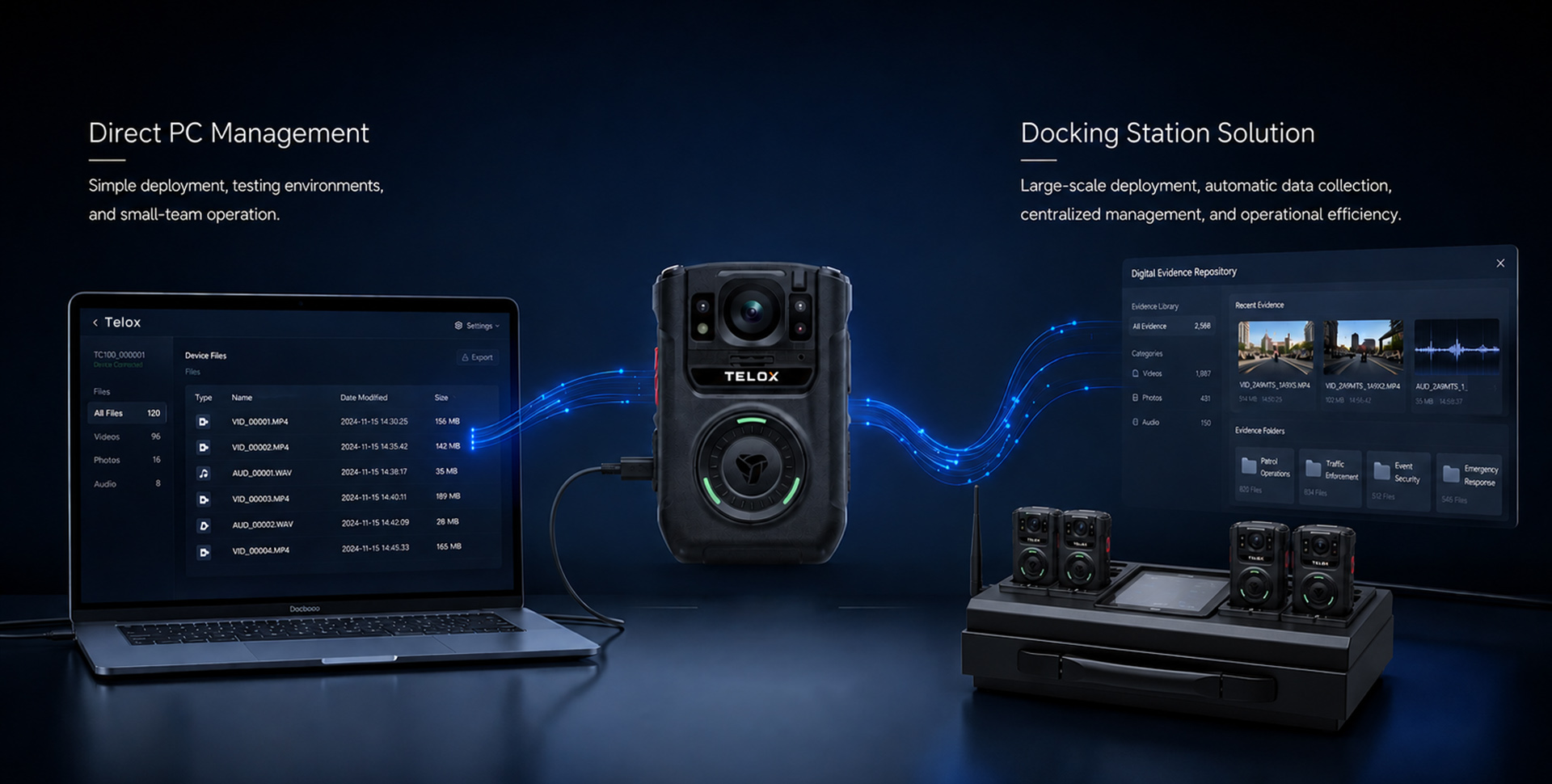

Direct PC Management
Ideal for simple deployment, testing environments, and small-team operations.

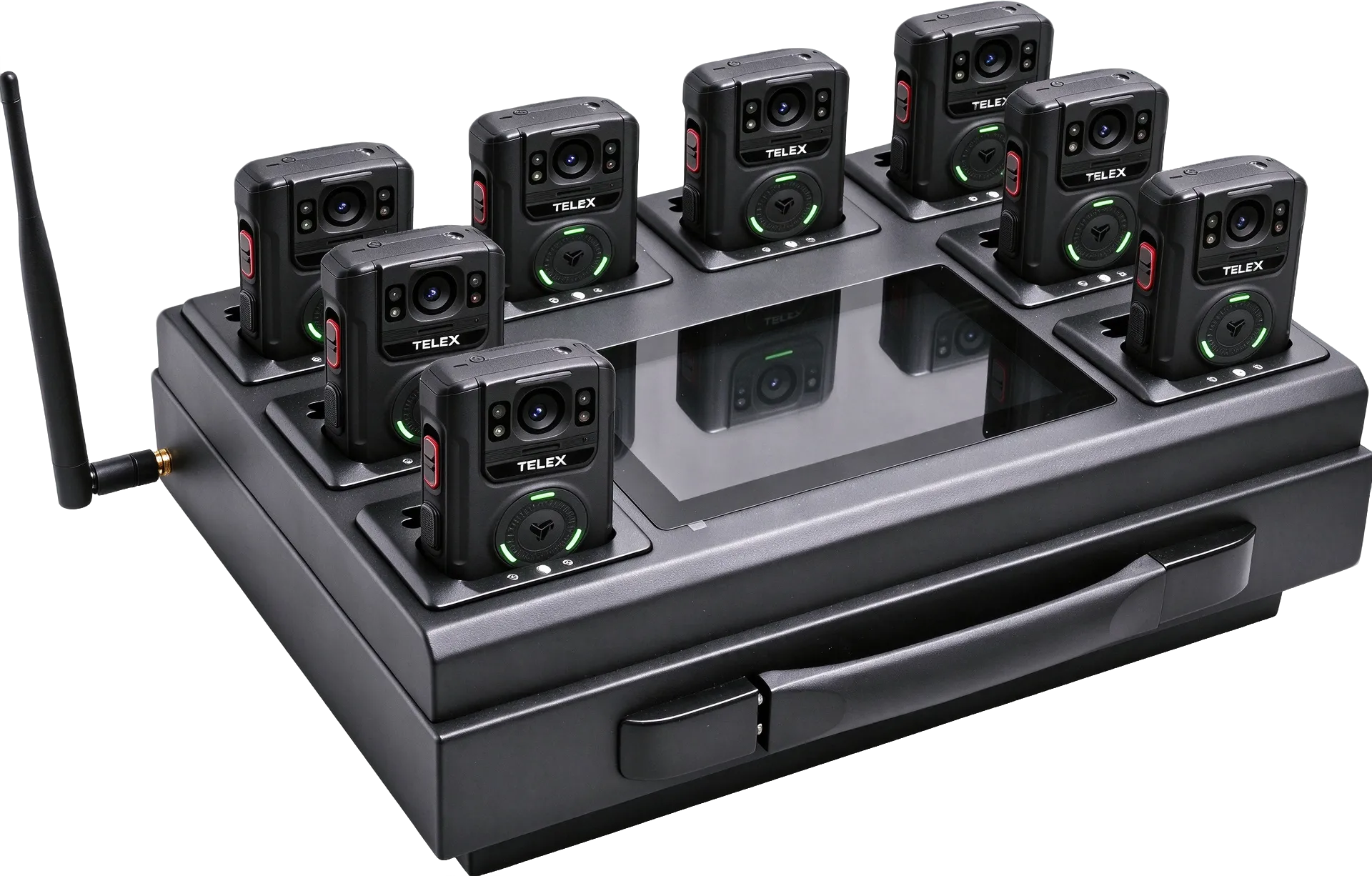

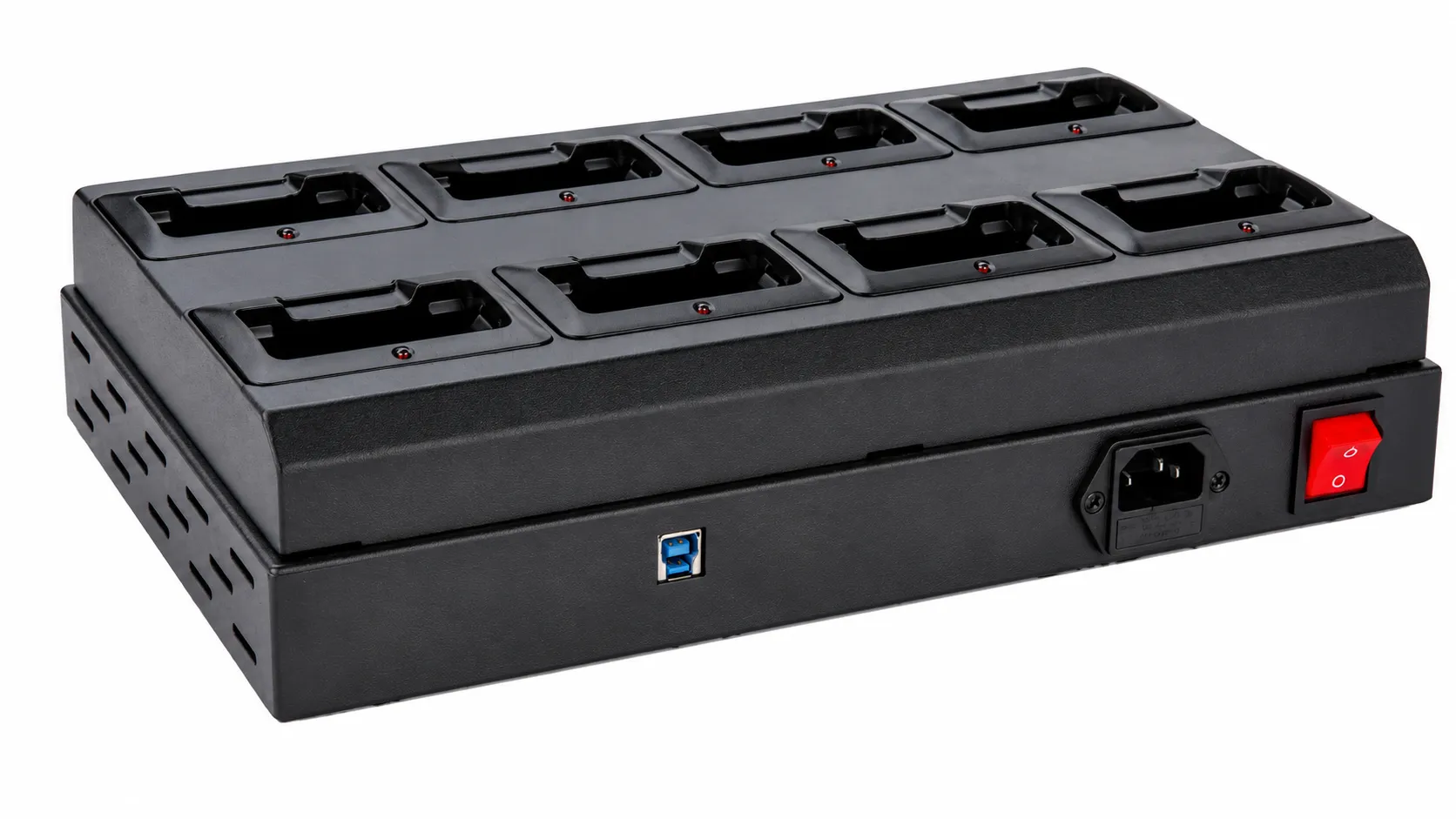

Docking Station Solution
Designed for large-scale deployment with automatic data collection, centralized management, and improved operational efficiency.
TC100 Specifications
|
Physical Characteristics
|
Specifications
|
| Dimension | 87*57*27mm |
| Weight | About 130g |
| IP grade | IP67 |
| Drop height | 1.5 Meters |
| Working temperature | -20 to +55°C |
| Storage temperature | -30 to + 70°C |
| Storage Humidity | <=90% |
|
Camera Features
|
Specifications
|
| Lens | GC4653 |
| Display | 0.96'' OLED |
| Field of View | 140° |
| Video Resolution |
2880*2160@30FPS 2560*1440@30FPS 1920*1080P@30FPS 1280*720@30FPS 848*480P@30FPS |
| Picture Resolution | 48M/40M/36M/32M/20M/16M/14M/12M/10M/8M/5M/3M/2M |
| Night Vision | Supported |
| IR Light | Supported |
| White Light | Supported |
| Video Recording | Video Recording |
| Taking Photo | Supported/JPEG |
| Stamp | Time/Date & GPS & ID |
| Pre/Post-Recording | Pre/Post-Recording |
| Loop-Recording | Supported |
| Indicator | Supported |
| Code mode | H.265/H.264 |
| Alarm sound | Low battery & memory alarm |
| Microphone | Single Mic |
| Speaker | 1 Watt |
| EIS | Yes |
| Battery |
3000mAh Removable 7 Hrs Continuous@1080P |
|
Platform & Connectivity
|
Specifications
|
| Platform | NT96580 |
| Storage | 64GB |
| WiFi Hotspot | Supported |
| Bluetooth | BLE 5.0 |
| Location | GPS+AGPS , GLONASS |
|
Sensor
|
Specifications
|
| Ambient light sensor | Supported |
|
Interaction & Interface
|
Specifications
|
| Keys |
Power Key Video Recording Key Taking Picture Key File Marking Key Cstom Key |
| Interface |
8 Pin interface *1 Type-C USB*1 |
|
Inbox Accessories
|
Specifications
|
| Belt Clip | *1 |
| Adapter | *1 |
| USB Cable | *1 |
| Battery | *1 |
| Desktop Charger | *1 |
| Quick Start | *1 |
Show all specifications
