Why MCPTT?

Although conventional voice-oriented push to talk radio solution can provide mature audio communication and slight amount data service, LTE technology reveals the possibility of multi-media content exchanging. Feature-rich information can improve the efficiency and safety of first responders drastically.

Who needs MCPTT?

Public safety entities, such as police, fire, and EMS(Emergency Medical Services) organizations and those who require instant and reliable communication for saving lives and properties management.

Rescue

Fire Fighter

Police

Government

What constitute MCPTT?

Quite amount of entities are keeping research on public safety communication and providing MCPTT services co-operatively. To deploy an MCPTT solution, MC network, MC services and MC UEs are necessary.

  • MCPTT UE

  • MCPTT Service

  • MCPTT Network

MCPTT VS PoC

Network

Terminal Hardware Requirements

QoS

Call setup latency

Radio Resource Occupation

Targeting Market

MCPTT LTE 3GPP MC features supported by chipset Yes Low Can be reduced by eMBMS technology Public Safety Entities
PoC 2G, 3G, LTE Not require chipset support No High Each terminal has an individual bearer and bandwidth occupation Commercial Markets

Specifications

TE350

  • Physical Characteristics
    Specifications
  • Dimension
    129mm*58mm*26.5mm
    5.07inch*2.28inch*1.04inch
  • Weight
    230 g(8.1 oz)(with Battery)
  • Environmental
    Specifications
  • Dust and Water Intrusion
    IP67
  • Drop Test
    1.5m
  • Working temperature
    -20°C to + 60°C(-4°F to 140°F)
  • Storage temperature
    -30'Cto + 70℃(-22°F to 158°F)
  • Connectivity
    Specifications
  • Cellular Network
    GSM: B2/3/5/8
    WCDMA: B1/2/4/5/8LTE-FDD:B1/2/3/4/5/7/8/20/28
    LTE-TDD: B38/40/41
  • LTE Category
    LTE Cat.4
  • MCPTT Features
    EMBMS
    QoS Class ldentifier
  • WLAN
    802.11a/ b/ g/ n/ ac
  • Bluetooth
    5.0+LE+HS+EDR
  • Location
    GPS, GLONASS, BEIDOU and AGPS
  • NFC
    Support
  • PLATFORM & HARDWAR
    Specifications
  • Operating System
    Android 13
  • Preloaded Applications
    Push-to-Talk APP (Please check with your service provider)
  • Processor
    Quad-core ARM® Cortex-A53 processor;up to 2.0GHz; 64-bit CPU
  • Memory
    2GB RAM, 16GB ROM
    Up to external 128 GB microSD™m card
  • Battery
    4000 mAh, Li-Polymer, Removable
  • Sensor Platform
    Acceleration Sensor, Gyroscope,Geomagnetic sensor
  • INTERACTION & DISPLAY
    Specifications
  • Size & Type
    Diagonal Dimension:2.0
    inchResolution:480*360
  • Buttons andKeyboards
    Power Button, Emergency Button,PTT Button, Navigation ButtonVolume+&Volume-ButtonsProgrammable Button X1
  • Indication
    Tri-Color LED:Red, Blue, Green Text to Speech
  • Audio
    Specifications
  • Dual-Micphone
    Dual-Mic with Noise Cancellation
  • Speaker
    3 Watt Radio grade speaker
  • Interaction & Interface
    Specifications
  • Card Slot
    Nano-SlM Card Slot* 2
    Micro-SD Card Slot*1
  • USB
    Type-C, USB 2.0
  • OTG
    Support
Show all specifications

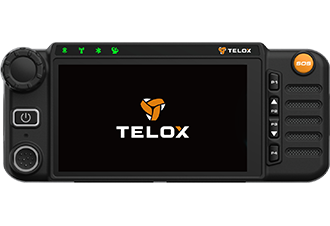

M6P

  • Physical Characteristics
    Specifications
  • Dimension
    198.00*70.00*81.20mm(L*W*D)
  • Weight
    442g
  • Environmental
    Specifications
  • IP Grade
    IP54
  • Working temperature
    -20 to +60°C
  • Power Supply
    DC 12-24V
  • Platform & Connectivity
    Specifications
  • OS
    Android Q
  • Processor
    2.2GHz Octa-core 64-bit Processor
  • RAM &ROM
    3GB + 32GB
  • Cellular Network
    Global:
    GSM: B2/B3/B5/B8
    WCDMA: B1/B2/B4/B5/B8
    FDD-LTE:B1/B2/B3/B4/B5/B7/
    B8/B20/B28a/B28b
    TDD-LTE: B38/B39/B40/B41 (200M) (Antenna needs to be connected)
    America：
    WCDMA: B2/B4/B5
    FDD-LTE:B2/B4/B5/B7/B12/B13/B14/
    B17/B25/B26/B66/B71
    TDD-LTE: B41(200M) (Antenna needs to be connected)
  • WiFi
    IEEE 802.11 a/b/g/n/ac 2.4G+5G (Antenna needs to be connected)
  • Bluetooth
    BT2.1+EDR/ 3.0/ 4.1 LE/ 4.2+BLE/ 5.0
  • Location
    GPS+AGPS , GLONASS (Antenna needs to be connected)
  • Display
    Specifications
  • Size & Type
    5.0-inch HD Anti-Glare Screen
  • Touch Pane
    LCD Bonded 5 points Capacitive, support wet fingers, glove operation
  • Audio
    Specifications
  • Microphone
    2 microphones with noise cancellation
  • Speaker
    5 Watt Built-in Speaker
  • Interaction & Interface
    Specifications
  • Buttons & Channel Knob
    Power Button
    PTT Button(P1)
    Channel Switch & Volume+/- Knob
    Programmable Buttons
    SOS Button
  • Interface
    Micro-SIM card slot*2
    Micro-SD card slot (Up to 128GB)
    10Pin aviation interface
    Type-C USB 2.0
    USB-A
    3.5mm audio interface
    3Pin power interface
    DB9 interface
    Antenna interfaces
Show all specifications
