SMALL SIZE
Big capacity
Big capacity

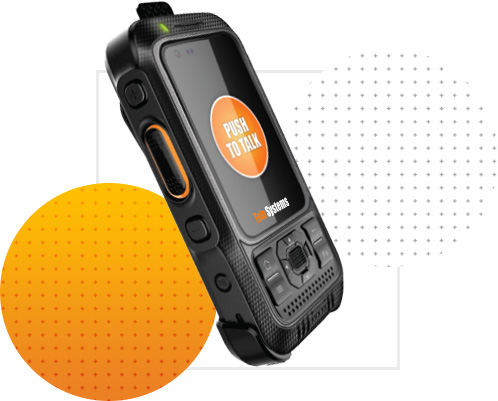

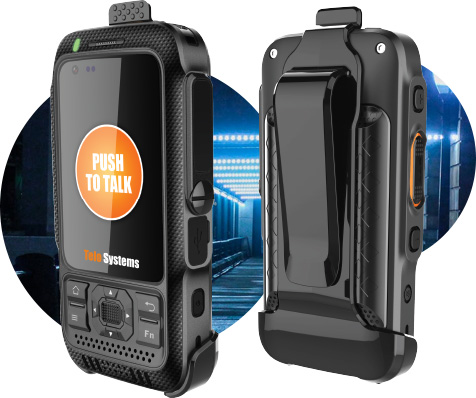

TeloPTT TE580 smart broadband handheld integrates voice, data, and video services into a single device. It is based on the Android 5.1 OS and can access GSM/3G/ 4G/LTE networks to ensure the optimal coverage.
The TE580 is thus ideal for public safety, public utility, transportation and private organizations, where users can quickly collaborate and share information across organizations.
Smart LTE Handheld
Delivers an exceptional
combination of rugged hardware,
powerful software and broadband
connectivity.
Unified Intelligence
Seamless Connectivity
GSM/3G/4G/LTE, Bluetooth and WiFi
GSM/3G/4G/LTE, Bluetooth and WiFi
Durability
IP67, dust, Rain & Water immersion of 1 meter for 30 minutes
IP67, dust, Rain & Water immersion of 1 meter for 30 minutes
Android 5.1
Operation System
Operation System
Crystal Clear Audio
2.0W power
2.0W power
Long Battery Life
High Capacity Battery
High Capacity Battery
Multiple Location Service
GPS/GLONASS/AGPS
GPS/GLONASS/AGPS
| Connectivity | Specifications |
| Network |
American Standard Version:
GSM: B2 B5
WCDMA: B1 B2 B5
FDD-LTE: B2 B4 B5 B7 B12 B17
American B28 Version:
GSM: B2 B5
WCDMA: B1 B2 B5
FDD-LTE: B2 B4 B5 B7 B12 B17 B28A B28B
Global Version
GSM: B2 B3 B5 B8
WCDMA: B1 B2 B5 B8
TDSCDMA: B34 B39
FDD-LTE: B1 B3 B5 B7 B8 B20
TDD-LTE: B38 B39 B40 B41
Global B28 Version
GSM: B2 B3 B5 B8
WCDMA: B1 B2 B5 B8
FDD-LTE: B1 B3 B5 B7 B8 B20 B28
|
| WiFi |
Oparating Band: 2.4GHz & 5GHz Standards: 802.11 b/g/n |
| Bluetooth | Support |
| GPS | GLONASS, GPS, AGPS support |
| Hardware | Specifications |
| CPU | ARM: Mediatek MT6735V/W/6737M |
| Memory |
RAM+ROM: 1GB+8GB SD Card: 32GB |
| Display | 2.4" Capacitive, touch screen |
| Camera | Back: 8M with focus Front: 2M Flash Light: real light |
| Speaker | Output: 2.0W |
| Battery | 3,600 mAh |
| Ports | USB type : Micro USB |
| Interface | M6 Interface for Remote Speaker Microphone, Earpiece, External Camera |
| Sensors | G-Sersor&Acceleration Sensor, Proximity Sensor, Light Sensor, E-Compass |
| Software | Specifications |
| Operating Systems | Android 5.1 |
| web | Android supported web browser |
| Physical | Specifications |
| Dimensions(H * W * D) | 119.5*61.5*26.5(mm) |
| Weight | less 205g |
| Durability | IP67, Drop Test 1.5m |
| Operating Temperature | -20o C ~ 60o C |
| Storage Temperature | -30o C ~ 70o C |
