smart design,
radio mind
radio mind

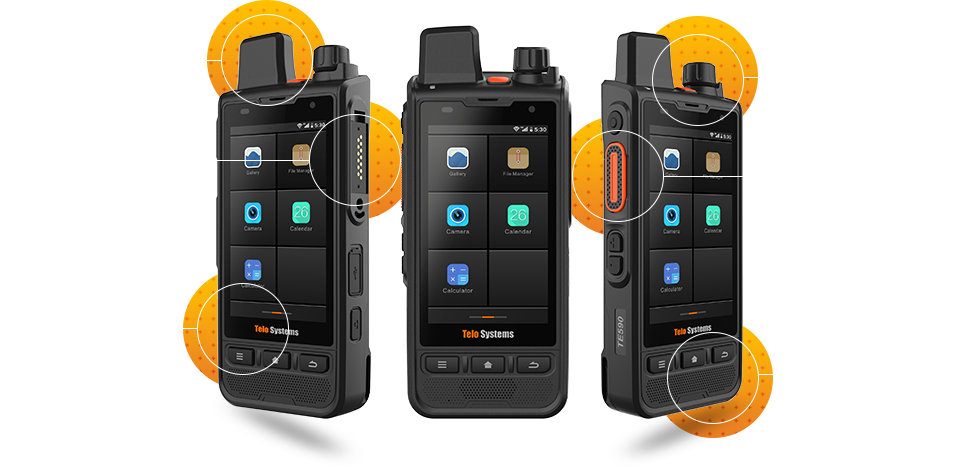

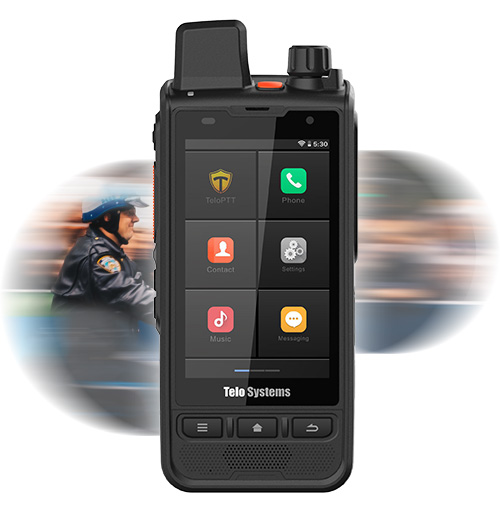

The Ultra Rugged TE590 (IP68 & MIL810G) is dedicated for better broadband experience.
The design itself is purposed to simplify the interaction with users by using convenient channel knob and enlarged system icons.
This android based smart handheld has a wide frequency coverage and also supports glove and wet operation. it can be used in public safety, Utilities, Law Enforcement, Fire Department, Logistics, Healthcare and Mining etc..
Push-to-talk
Large, tactile side button
Large, tactile side button
3.5˝ HD Screen
High visibility in direct sunlight
High visibility in direct sunlight
Seamless Connectivity
GSM/3G/LTE/4G, Bluetooth and WiFi
GSM/3G/LTE/4G, Bluetooth and WiFi
Rapid Charge Functionality
Support multiple charging ways by using USB-C or Desktop Charger
Support multiple charging ways by using USB-C or Desktop Charger
Water Proof
Up to 1.5m for 30min
Up to 1.5m for 30min
Location
GPS/GLONASS, AGPS
GPS/GLONASS, AGPS
Channel Knob
Convenient channel adjustment & announcement
Convenient channel adjustment & announcement
Powerful Audio
∅30mm speaker with 2.0W power
∅30mm speaker with 2.0W power
Camera
13MP rear camera
13MP rear camera
Long Battery Life
4200mAh large capacity battery
4200mAh large capacity battery
Drop/impact Resistant
Resistant to 1.5m drops
Resistant to 1.5m drops
Ergonomic Design
Enable convenient one-hand operation
Enable convenient one-hand operation
| Connectivity | Specifications |
| Frequency band |
INT Version:
GSM: B2 / B3 / B8
WCDMA: B1 / B2 / B8
FDD-LTE: B1 / B3 / B7 / B8 / B20 / B28
TDD-LTE: B38 / B39 / B40 / B41
America Version:
GSM: B2 / B5
WCDMA: B1 / B2 / B5
FDD-LTE: B1 / B2 / B4 / B5 / B7 / B12 / B17 / B28
TDD-LTE: B38 / B39 / B40 / B41
|
| WiFi | WiFi IEEE 802.11 a/b/g/n(5.8GHz and 2.4GHz) |
| Bluetooth | BT4.0 and BLE |
| NFC | Support |
| GPS | GPS/GLONASS/AGPS |
| Hardware | Specifications |
| CPU | MTK6753 1.3GHz Octa Core Processor |
| Memory | RAM + ROM : 2GB+16GB DDR3 |
| Display | 3.5˝ Touch Screen |
| Camera | Rear Camera 13MP, Auto Focus, Flash LED Front Camera: 2MP |
| Speaker | 2.0W, ∅30mm Waterproof Speaker |
| Battery | 4,200mAh |
| USB Ports | USB Type-C |
| Interface | M6 interface for Remote Speaker Microphone, Earpiece, External Camera |
| Sensors | G-Sensor & Acceleration Sensor, Proximity Sensor, Light Sensor, Light Sensor, E-Compass |
| Software | Specifications |
| Operating Systems | Android 6.0 |
| Physical | Specifications |
| Dimensions(H * W * D) | 134.6*63.5*24.5mm |
| Weight | 288g |
| Working Temperature | -20o C to +60o C |
| Storage Temperature | -40o C to +85o C |
| Protection Rating | IP68 & MIL810G |
| VOX | Support VOX Accessories |
